Using Layers

In a visualization you can make use of layers.

A layer is like a glass window where you can put images like a post-it on. And you can stack many layers on top of each other as you like.

If you look through the glass windows all the separate images form one image as a whole.

dragon1 layers

Using Layers in a Visualization.

When you drag or insert shapes on the canvas, automatically they are assigned (or placed) in the current layers.

If you hide or show a layer, all shapes assigned to that layer are hidden or shown.

Layers in this way help you to create and handle more complex images and you can assign effects to all shapes in a certain layer.

If you remove the assignment of a shape to any layer, it is always shown (visible) on every layer.

How to switch a layer on

To switch a layer on or off:

  • Select a Visualization in the Explorer Treeview
  • Go to the Layers and Frames Attributes panel in the Inspector
  • Click on the word Layers and Frames to expand the panel
  • If you click on the name of a layer, like Layer 1, you will see the plus sign change into a minus sign, and all shapes in that layer hidden.
  • If you click again the shapes in that layer are shown again.

How to place a shape in a layer

To place a shape in a layer:

  • Select a Visualization in the Explorer Treeview
  • Next drag a shape from a shape panel onto the visualization canvas

  • If you select the shape and expand the Shape Attributes panel, you will see in which layer the shape has been put. Here you can easily change the layer a shape is put in.

How to lock a shape in a layer

If you want to lock a shape:

  • Go to the Shape Attributes panel
  • Select a shape and check or uncheck the Locked checkbox.
  • Be sure to save your visualization's changes by clicking on the Save button.

Using mouse events to show or hide layers

You can use mouse events to show or hide layers.

To show or hide a layers on a mouse click:

  • Select a visualization in the Explorer treeview
  • Drag shapes onto the visualization canvas in layer 1
  • Drag a shape onto the visualization canvas in layer 2
  • Select the shape in layer 2
  • Expand the Data Attributes panel
  • Enter the following script in the Rule fields
    • Rule event: onmouseover
    • Rule condition: always
    • Rule action: showlayer(1, fadeIn(500))

How to hide layers in the player

If you watch a published visualization in the player on a watch page or in the content viewer, and if you selected AutoPlay in the Page Attributes panel, the visualization will be automatically played.

By default all the layers in every frame are shown. If you do not want a layer to be shown in all frames in the player select * (hidden) in the layer selector by clicking on it twice. This goes for this layer in all frames.

Example Screenshots

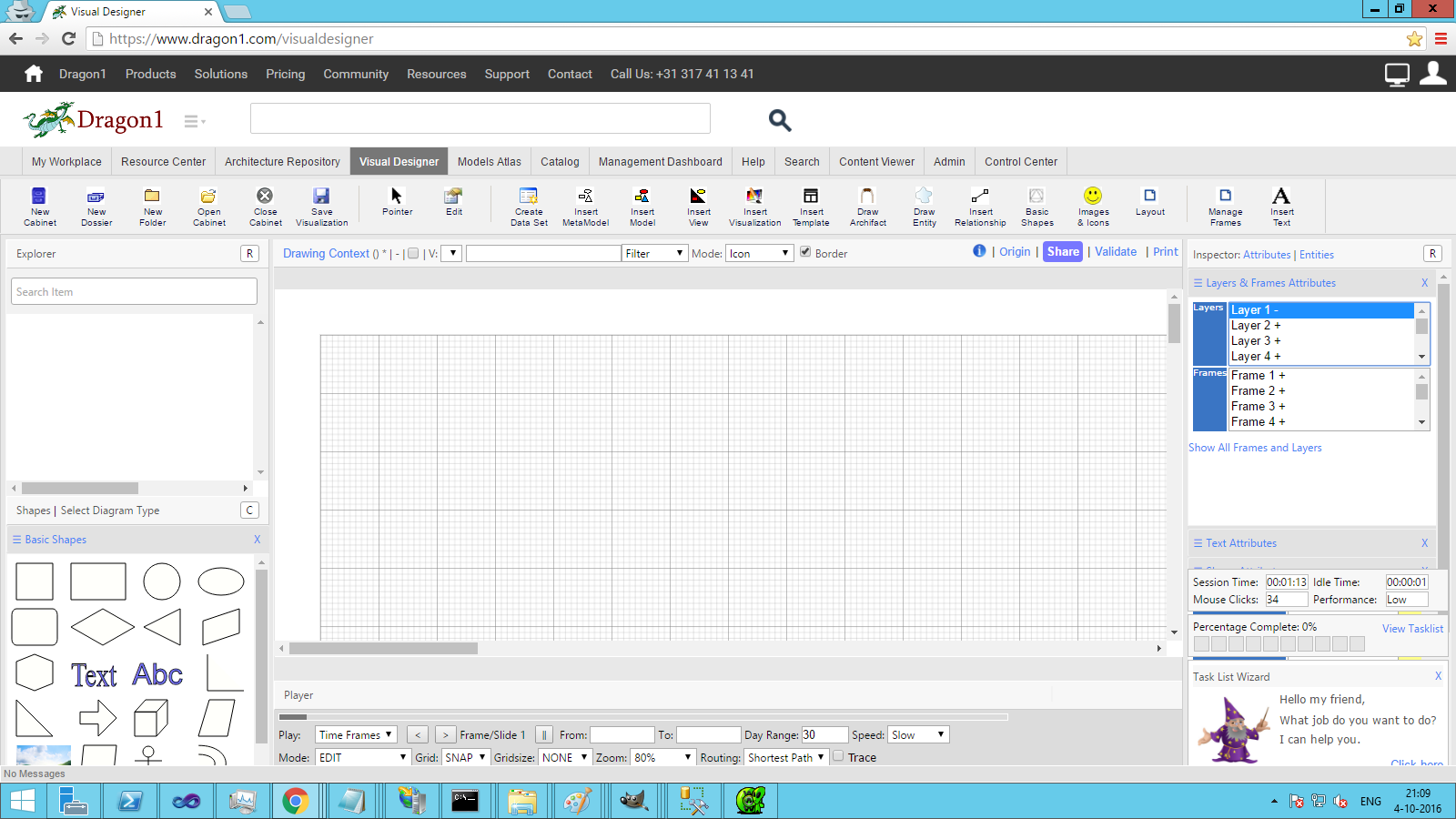

dragon1 layer switched off

Screenshot showing a switched off layer 1, hiding all the shapes in this layer.

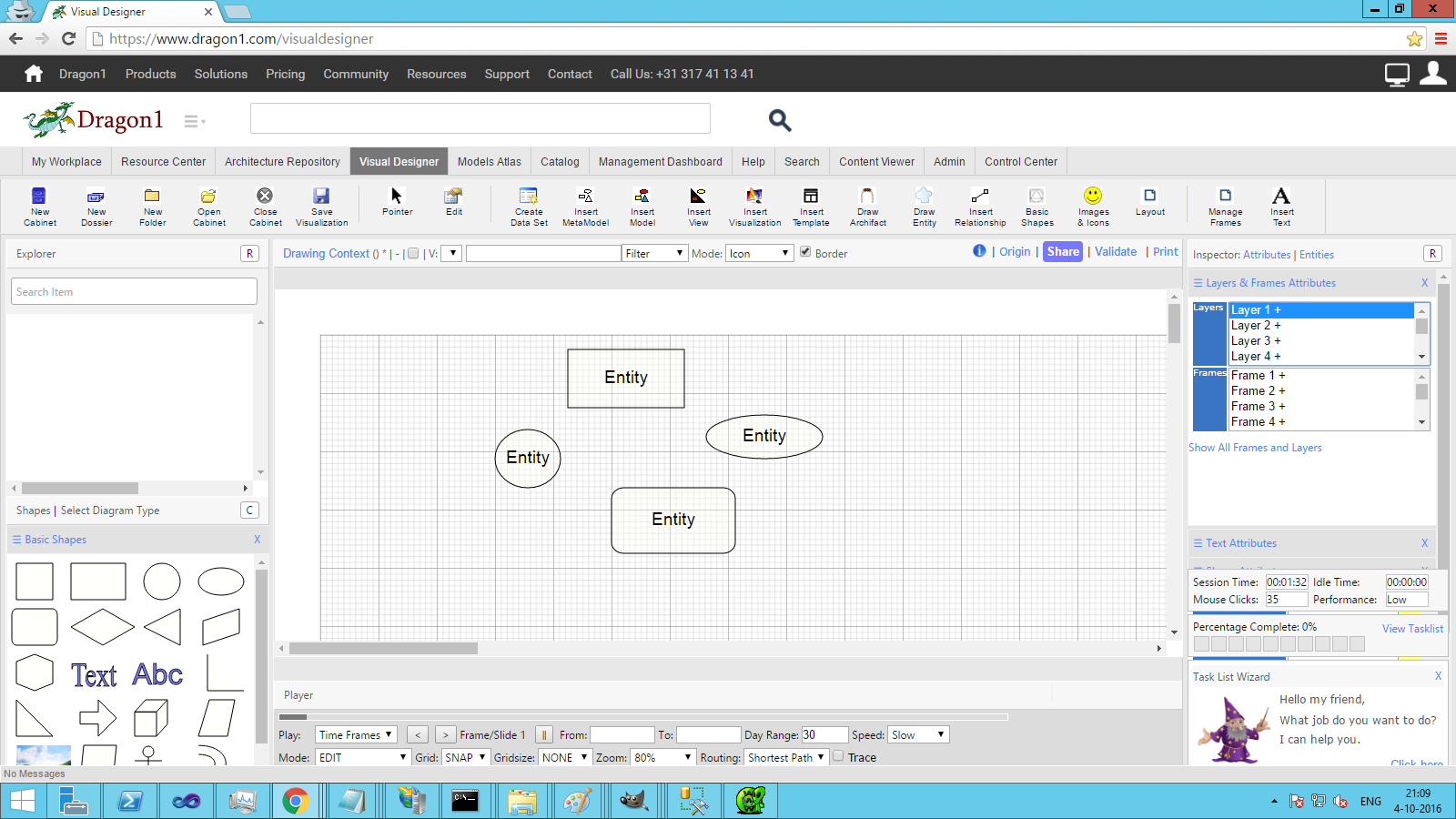

dragon1 layer switched on

Screenshot showing a switched on layer 1, showing all the shapes in this layer.

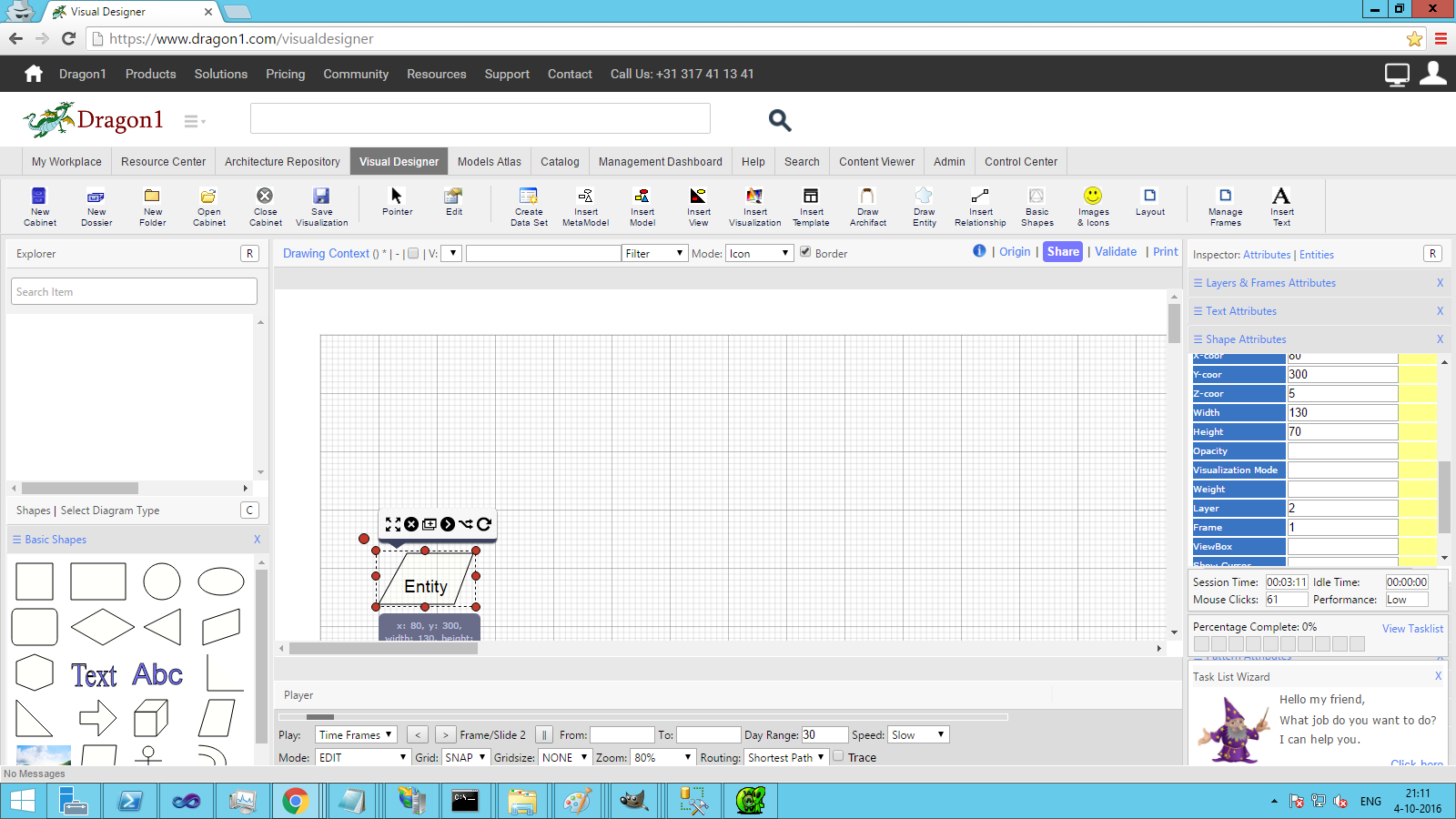

dragon1 shape placed in layer

Screenshot showing a shape placed in layer 2.

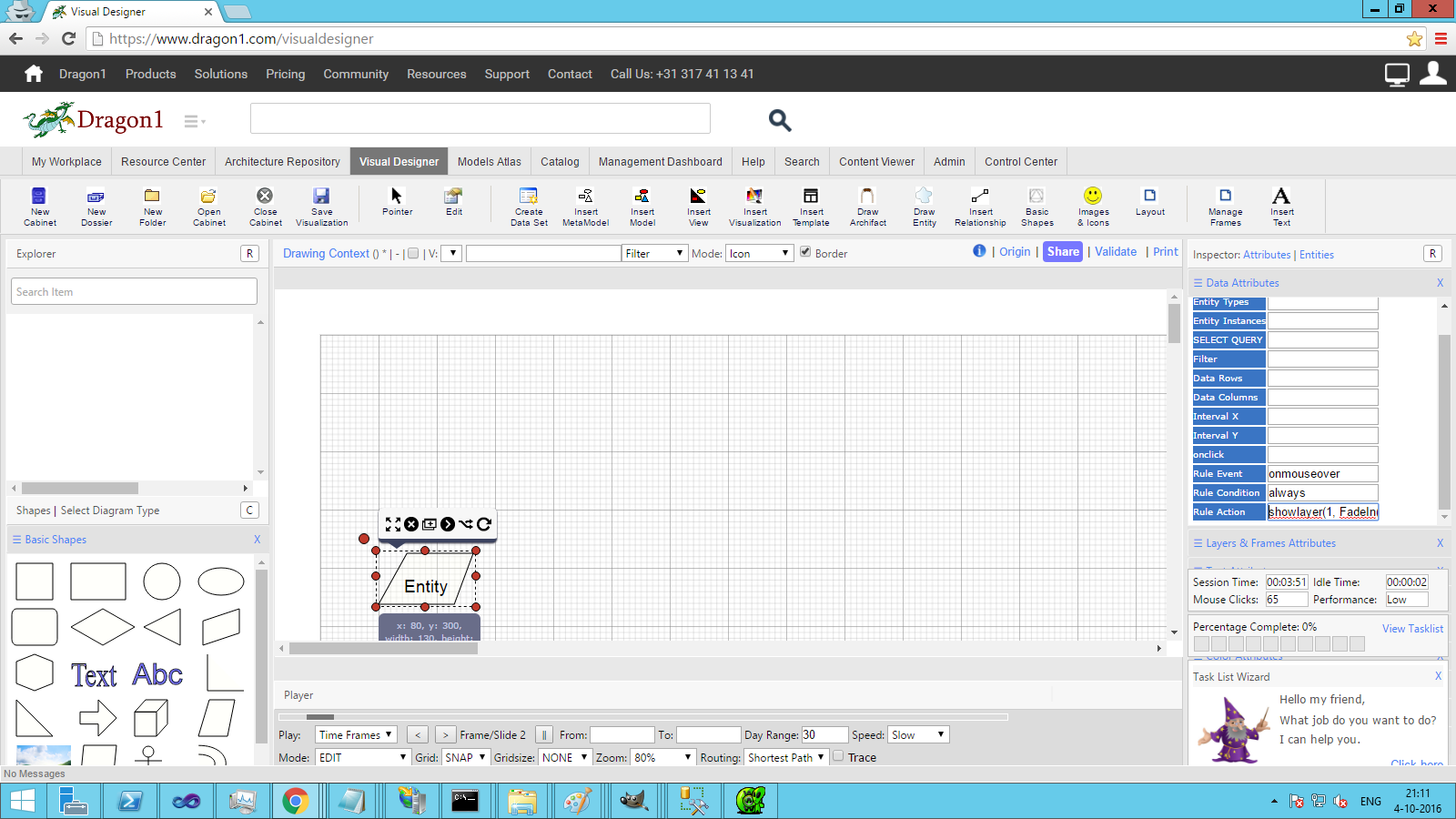

dragon1 shape setup with rule

Screenshot showing how the shape in layer 2 is setup with a rule to show layer 1 on mouseover.
