A robust, scalable, and secure network forms the foundation for virtually all digital activities. Whether processing customer data, supporting cloud applications, or connecting IoT devices, a solid network architecture is essential to ensure the entire infrastructure is protected from delays, outages, and security breaches.
What is Network Architecture?
Network architecture describes the structure and design of a computer network. It defines how devices (routers, switches, servers, clients) communicate and how data is transported across the network.
It includes both physical and logical aspects of connectivity, security, and performance:
- Physical components: hardware such as routers, switches, cabling, and data centers.
- Logical structure: protocols, addressing, routing and communication rules.
- Security: access control, encryption, firewalls, and intrusion detection/prevention.
A robust network architecture ensures that data flows through the system reliably, quickly, and securely, while allowing for future growth and the integration of new technologies.
Common network components
| Component | Function | Example |
|---|
| Router | Connects multiple networks and determines the best path for traffic. | Edge router linking corporate LAN to the Internet |
| Switch | Connects devices inside a LAN for fast local communication. | Campus switch connecting workstations and printers |
| Firewall | Filters and monitors traffic to block unauthorized access. | Perimeter firewall or cloud-based firewall |
| Load balancer | Distributes traffic across multiple servers to increase availability. | HTTP load balancer for web services |
| WAP (Wireless Access Point) | Provides Wi‑Fi connectivity to wireless devices. | Office Wi‑Fi access points |
| SD‑WAN | Software-driven WAN connectivity between sites. | Branch offices using internet links for site-to-site connectivity |
| IDS/IPS | Detects and prevents suspicious network activity. | Network intrusion prevention system |
| Edge device | Collects or processes data close to the source. | IoT sensor or edge gateway |
| Server | Provides services such as storage, databases or mail. | File server, application server |
Network scope and size
| Type | Description | Example |
|---|
| PAN (Personal Area Network) | Very small network for personal devices. | Bluetooth between phone and headset |
| LAN (Local Area Network) | Local network within a building or campus. | Office network |
| CAN (Campus Area Network) | Network across multiple buildings. | University campus |
| MAN (Metropolitan Area Network) | City-scale network. | Municipal fiber network |
| WAN (Wide Area Network) | Large geographic network. | The Internet, or corporate WAN |

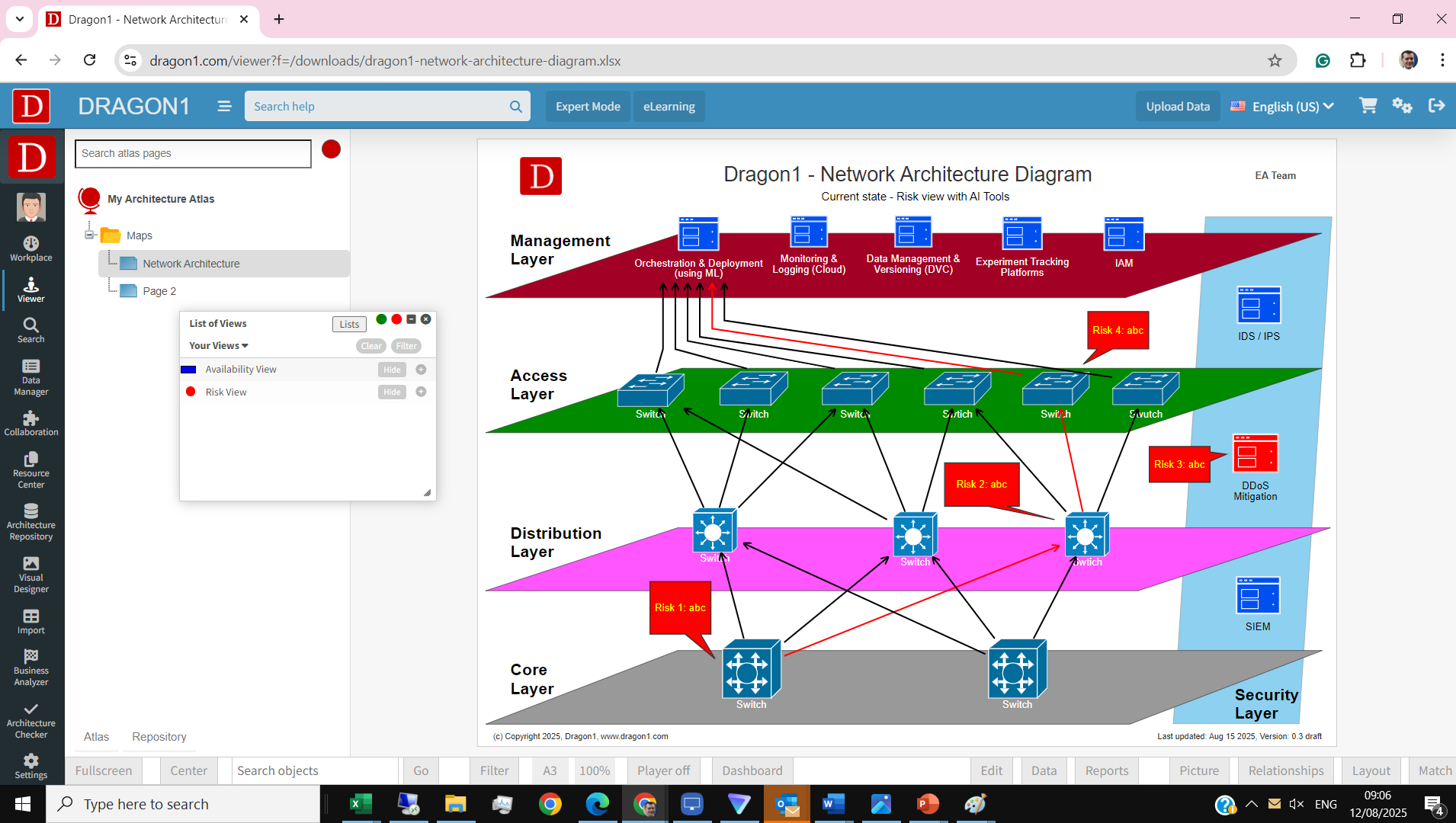

Dragon1 Layered Network Architecture
The network architecture layers consist of the following entities and design principles:
- Infrastructure layer: Routers, switches, firewalls
- Connection layer: VPN, MPLS, Internet, SD-WAN
- Management layer: Monitoring tools, SDN controllers
- Security layer: Firewalls, IDS/IPS, NAC, Zero Trust
Design principles
In network architecture design, the following design principles are used, among others.
- Segmentation — logical separation (VLANs, micro-segmentation) for performance and security.
- Redundancy — eliminate single points of failure with redundant links and devices.
- Manageability — central management and modern tooling (SDN, orchestration).
- Scalability — design for growth in users and services.
- Security by design — embed security controls from day one (Zero Trust).
- Performance optimization — quality of service and traffic shaping for critical flows.
- Automation — infrastructure as code and automated provisioning.
- Observability — monitoring, logging and tracing built-in.
- Energy efficiency — consider power and thermal implications.
Types of Network Architectures
Client–Server Architecture
A central server provides services to many clients. Pros: centralized control, easier policy enforcement. Cons: server dependency, higher infrastructure cost.
Peer‑to‑Peer (P2P) Architecture
All nodes are equal and can act as clients and servers. Pros: reduced infrastructure needs. Cons: harder to secure and manage at scale.
Distributed Architecture
Workloads are spread across multiple systems (cloud platforms, microservices). Pros: high availability and elasticity. Cons: operational complexity and potential latency.
Mesh Networks Architecture
Nodes connect directly to multiple peers for resilience; commonly used in wireless IoT scenarios.
Software‑Defined Networking (SDN) Architecture
Separates control and data planes to enable programmatic network control and automation.
Example IoT network architecture
IoT devices such as smart thermostats, security cameras, smartwatches, and sensors in factories must send, receive, and process data. Without a well-designed network architecture, these devices cannot communicate effectively.
An IoT network architecture must be able to efficiently process large amounts of data while maintaining security as a top priority. This means the architecture must support protocols such as MQTT, CoAP, Zigbee, or LoRaWAN, while also securely managing the connection to cloud platforms.
Because IoT environments can be complex and expansive, scalability is essential. Think of smart cities with thousands of measurement points or fully automated factories. Without a future-proof network architecture, such projects would quickly run into technical limitations.
Network Architecture vs Digital Network Architecture
The key difference lies in their scope and specific focus. Network architecture encompasses the design and structure of a network, including its hardware, protocols, and topology.
Digital Network Architecture (DNA) is a modern, software-driven approach to network design and management that emphasizes automation, virtualization, analytics, and security. While often linked to Cisco’s framework, the concept applies broadly across networking technologies.
Digital Network Architecture focuses on policy-based automation, centralized control, real-time analytics, integrated security, and readiness for cloud and IoT. The aim is to create networks that are agile, programmable, and adaptable, evolving from static physical designs into intelligent, automated systems.Interesting Things to Discover
Here are some future trends to discover:
- Zero Trust networking — continual verification of users and devices.
- Cloud‑first architectures and tighter cloud connectivity.
- IPv6 adoption and IPv6‑only design patterns.
- AI-driven networking for automated optimization and anomaly detection.
- Edge and fog computing to process data closer to the source.
