CxO Briefing: Government, Software Engineering & System Design

95% Automated Compliance Check via AI UML Component Diagrams

AI Software Architecture for Permit Approval

How to design the component architecture for automated compliance check

The Dragon1 AI UML Software Architect Tool modeled the complex software architecture, generating the Component Diagram that defines the AI agents, BIM data ingestion services, and core compliance engine.

1. Current State (As-Is) - Monolithic Design

High Maintenance Costs | Slow Feature Deployment

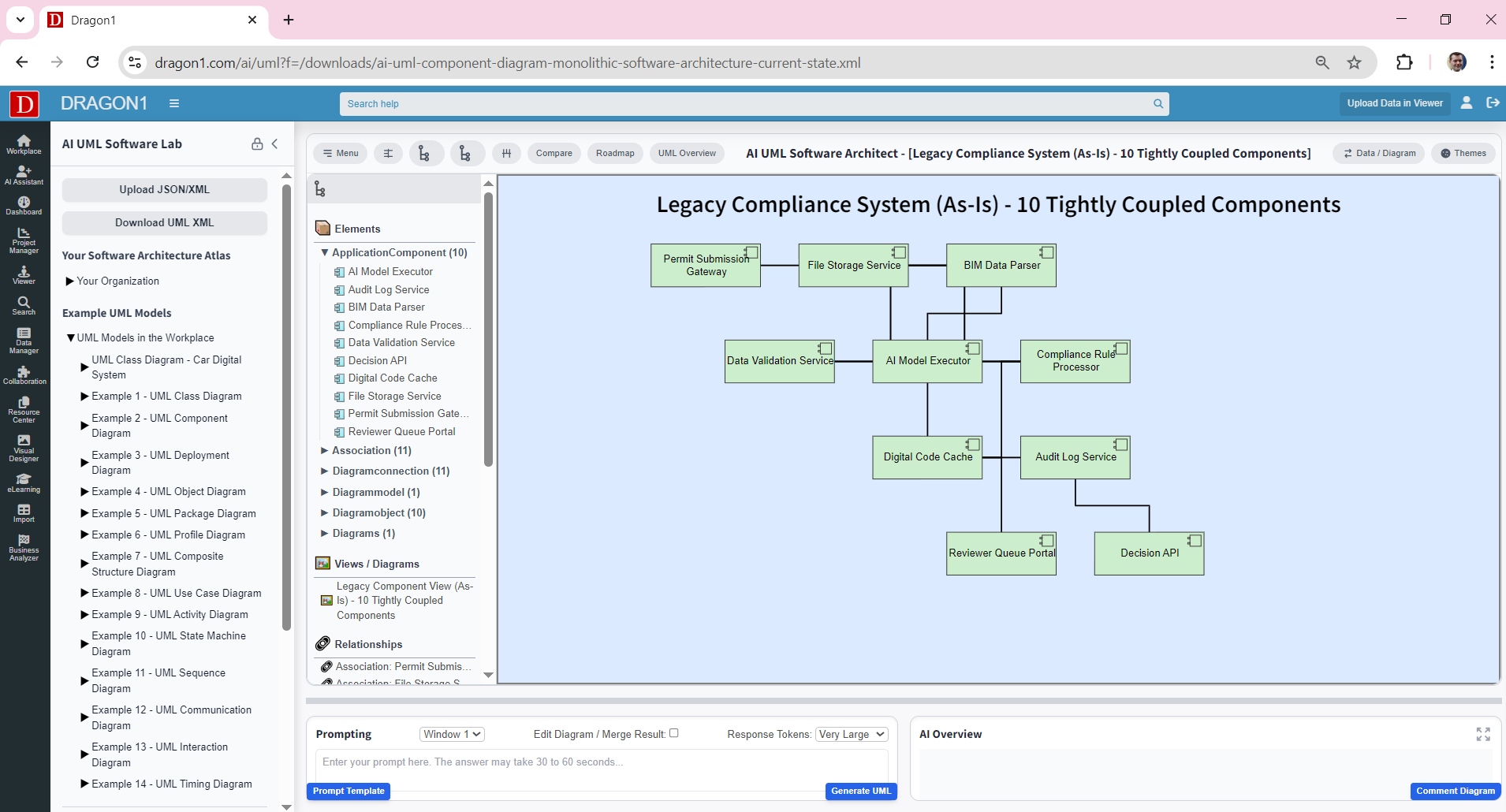

UML Component Diagram of the inefficient Current State system architecture with tight coupling

2. Target State (To-Be) - Decoupled Architecture

High Scalability | Near-Instant Component Vetting

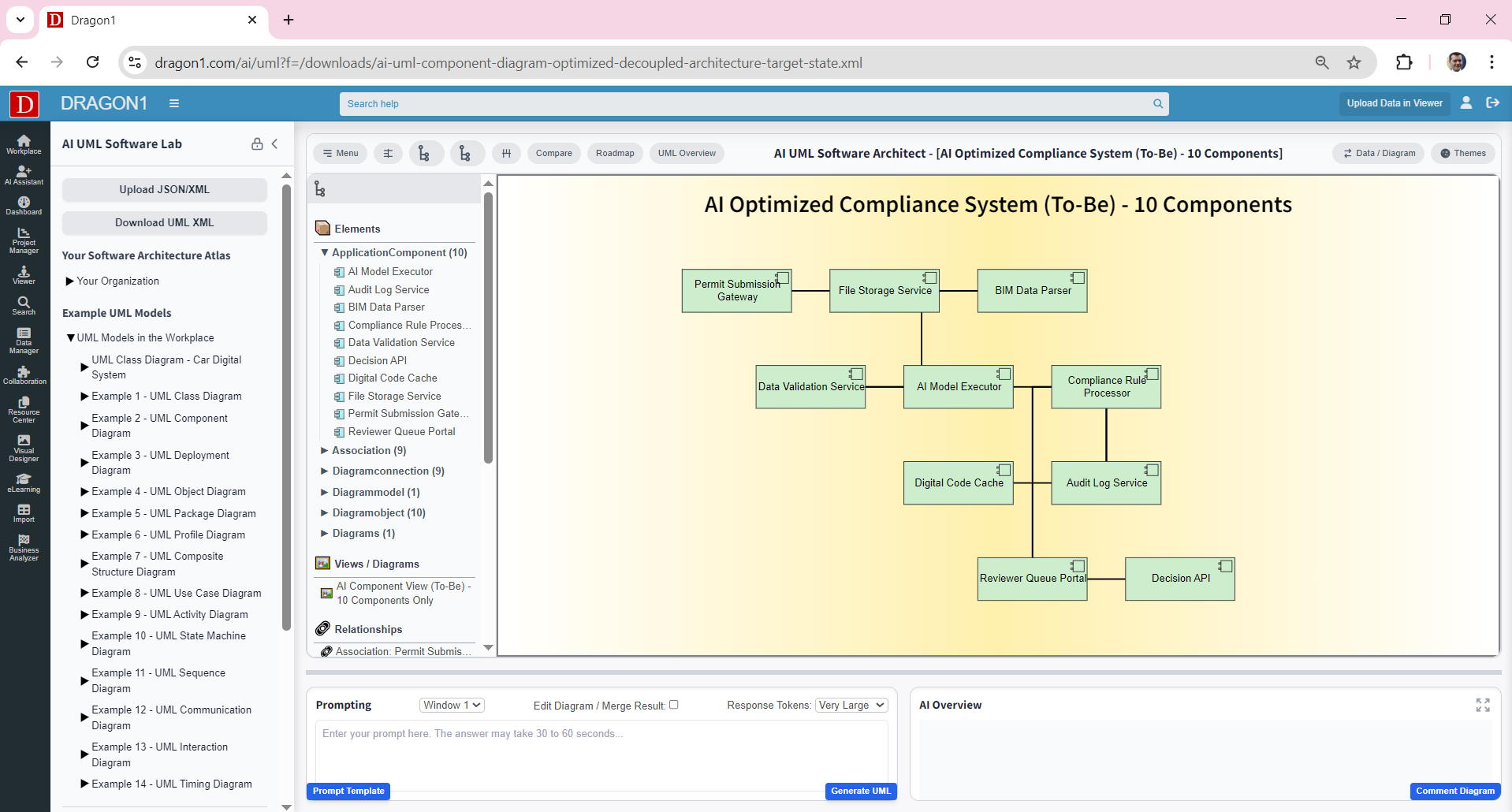

UML Component Diagram of the optimized Future State system with decoupled AI components and interfaces

Unlock the Full ROI Blueprint Now

Immediate Payback Justification

85% Modeling Efficiency: The Cost of Doing Nothing

85%

Reduction in time to create and document complex UML Component models.

€10K

Average cost saved per project phase by ensuring architectural compliance upfront.

99%

Accuracy in defining interface contracts and dependencies between components.

The Enterprise Result: Transformation Metrics

95%

Decoupled Architecture Rate.

Components are clearly separated by interfaces, ensuring high system resilience and maintainability.

75%

Reduction in Integration Testing Time.

Clear UML models and defined interfaces dramatically accelerate system assembly and testing.

Fairness

Standardized and Equitable Code Enforcement.

AI applies building codes consistently across all submissions, reducing subjective interpretation.

Detailed Architecture Comparison: Before and After AI UML

1. Current State (As-Is): Tight Coupling and Technical Debt

The existing software architecture is monolithic, where components share direct dependencies, making maintenance and updates extremely difficult and risky.

Tight Coupling / Hidden DependenciesA change in one module breaks functionality in unrelated modules, leading to long bug cycles.Time to market increases by 50%

2. Future State (To-Be): AI-Generated Component Blueprint

The AI UML Software Architect tool generates a component model defining clear interfaces and services (lollipop and socket notation), ensuring high cohesion and low coupling for easy scalability.

UML Component Diagram GenerationAI automatically maps business functions (from BPMN) to technical software components, defining provided and required interfaces.System resilience and scalability achieved by decoupling core services (AI, Data, Review).
